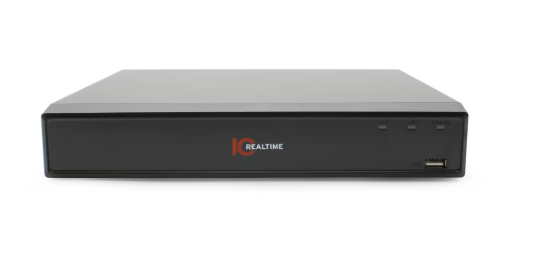

IC Realtime NVR-FX16POE-1U16MP1-4TB
IC Realtime - 4TB 16 Channel 1U NVR - Integrated 16 Port POE Switch, supports 8MP Resolution, 128Mbps, 2 HDDs 32TB max., 2 USB, alarm 4/2, 1 HDMI + 1 VGA, G.711A/G.711U/PCM/G726, Smart H.265+; H.265; Smart H.264+; H.264, 100240 VAC, 47-63 Hz (130W Max).
Thumbnail Filmstrip of IC Realtime NVR-FX16POE-1U16MP1-4TB Images
Specifications
IC Realtime - NVR-FX08POE-1U16MP1-4TB - 8 Channel 1U
Network PoE Video Recorder- 4TB
NVR-FX16POE-1U16MP1 is a compact yet sophisticated
rack-mountable NVR with a built-in 16 port PoE switch embedded on its rear
panel, eliminating the need for a separate POE camera switch, saving both money
and rack space.
EASY SETUP
FX series NVRs are built to be easy to install. They are
both AI smart and easily human accessible, thanks to IC Realtime’s ICR 4.0 O/S
with a redesigned GUI interface that makes them easy to navigate and configure.
And by embracing P2P network connectivity and automatic new camera
initialization, setting up a camera system with NVR-FX16POE-1U16MP1 is “plug
and play” easy.
UP TO 32TB ONBOARD & ULTRA SECURE
Up to two 16TB HDDs can be installed inside
NVR-FX16POE-1U16MP1 for maximum storage. In terms of security, like all IC
Realtime cameras & recorders, NVR-FX16POE-1U16MP1 is designed to defeat
cyber threats by using multiple layers of authorizations & password
protections to ensure device & network security. All network traffic is
encrypted in both directions to a point where our gear now meets the newest
network UL CAP certification standards. The FX series takes it a step further
by automatically configuring to meet today's threats & enabling an
updateable cybersecurity regime as they are installed.
CAMERAS UP TO 16MP + 4K HDMI
All FX series NVRs use Smart H.265+ video encoding, our
version of High-Efficiency Video Coding (HEVC) that uses an AI-based video
compression scheme. This H.265 and AI combo reduces bit rates up to 90%
compared with standard H.264 for maximum stream speed. These smart NVRS are
also backward compatible with H.264 & ONVIF 22.06 (Profile T; Profile S;
Profile G); CGI; SDK and P2P compliant to handle previously installed cameras.
AN NVR AS SMART AS OUR CAMERAS
IC Realtime FlexSmart Ai cameras with advanced IVS
(Intelligent Video System) and our metadata streaming iMD 2.0 (Intelligent
Motion Detection) cameras mean Object Search capabilities are supported on all
16 channels. NVR-FX16POE-1U16MP1 will work with FlexSmartAi cameras to
recognize features like; camera-based tripwire, intrusion, advanced IVS
perimeter protection, heat map & abandoned / missing object detection, and
Ai-enhanced smart motion detection. Dependably recognizing motor vehicles and
humans to reduce false alerts and speed searches.
THE PROFESSIONAL'S BEST 16 CAMERA CHOICE
Commercial-grade to the core, NVR-FX16POE-1U16MP1 now offers
a built-in POE with bridge mode, allowing third-party cameras to be addressed
over the local network or even integrate with the top smart home systems yet
still plug into the MX16's PoE ports. Alarm integration with 4 in/2 out ports,
and 2-way talk is supported for gates & access control with a pair of RCA
jacks. With simultaneous VGA and HDMI video outputs available on the backplane
of the chassis next to the 16 port POE switch, the NVR will decode a wide range
of camera resolutions, like up to 2 channels of 16 MP@30 fps, 4 channels of 8
MP/4K @30 fps, and will do 1080p@30 fps on all 16 channels for HDMI output for
local monitoring and of course work flawlessly with IC Realtime's new IC View+
mobile app.
With our 10-Year Limited Warranty and excellent iCare
customer service, the new NVR-FX16POE-1U16MP1 is clearly the best solution for
your next IP camera installation or system upgrade.
Key
Features:
- Smart H.265+/H.265/Smart H.264+/H.264
- Up to 16MP Resolution for Preview and Playback
- AI By NVR: IVS, iMD, Perimeter Protection, Face Detection and Recognition
- Rack Mountable, Built-in 16 Port PoE with Bridge Mode
- 256 Mbps Incoming Bandwidth, 4K Display Support
- 2 SATA III Ports, Up to 16TB capacity for each HDD
- Made In South Korea And Conforms To The Trade Agreements Act (TAA)
AI IVS (Intelligent Video System) by NVR
The new generation of AI recorders come equipped with an
onboard AI chip for video processing. It will essentially take any none AI
camera and convert into an AI based camera. That is not the only benefit, if
you use AI by camera instead you unlock other advanced features that was only
available on elite hardware such as License Plate databasing with an ANPR
(Automatic Number Plate Recognition) camera.
IVS by camera
Working with IVS-enabled IP cameras, the NVR recognizes and
records video that contains IVS data on all IP channels. The NVR records
standard intelligence at-the-edge features, as well as premium IVS features
that detect abandoned or missing objects, Tripwire violations, and intrusion
violations. The NVR is also capable of recording business analysis data – Audio
Detect, People Counting and Heat Map – from IP cameras with built-in
Intelligent Business Analytics.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265
codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI,
flexible multi-frame reference structure and intelligent noise reduction to
deliver high-quality video without straining the network. Smart H.265+
technology reduces bit rate and storage requirements by up to 70% when compared
to standard H.265 video compression.
iMD (Intelligent Motion Detect)
This is an upgraded version of motion detection currently
known as Intelligent Motion Detection (iMD). The upgraded Plus version greatly
improves alarm accuracy by pre-loading a deep learning algorithm that
recognizes people and vehicles. Motion detection alerts containing a human
and/or vehicle intrusion event are now possible with up to 95% accuracy.
Eliminate false alarms, save time and keep stress levels low knowing you're
protected.
Perimeter Protection
