    GeoVision GV-DFR1352 download pdf for GeoVision  GV-DFR1352

    GeoVision - Door Frame Card Reader, 8-Bit Microprocessor, Support for GV-Proximity Cards with GID (GeoVision Identifier) to Enhance Security, Weather-Proof/IP66 Rated, Reads GID/UID, 7.5~12V DC /200mA.

    Geovision logo
    GeoVision  GV-DFR1352

    Thumbnail Filmstrip of GeoVision GV-DFR1352 Images

      Purchase GeoVision GV-DFR1352

      SKU: GVDFR1352
      GeoVision GV-DFR1352

      Please sign in to purchase.

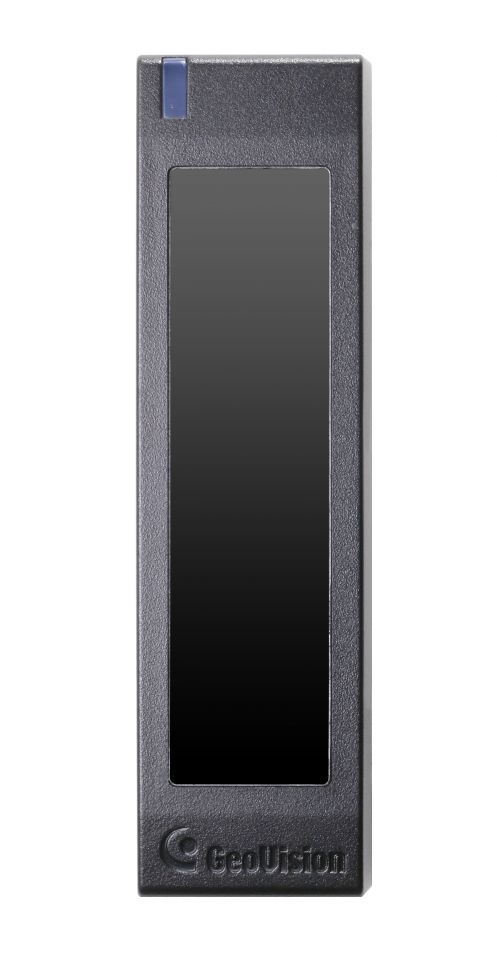

      Geovision  Door Frame Card Reader

      The GV‐DFR1352 is a card reader designed to be installed on the door frame for recognizing identification cards. Featured with the Wiegand and RS‐485 outputs, the unit can be connected to any standard access control panel. GV‐DFR1352 comes with a weather sealed and IP66 compliant housing for outdoor use.

      Key Features:

      • Card reader with weather‐proof and IP66‐compliant housing
      • Wiegand interface supported
      • RS‐485 output: 9,600 bps, connect up to 8 GV‐DFR1352 units
      • 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic)
      • Support for GV‐Proximity Cards with GID (GeoVision Identifier) to enhance security
