    Altronix HubWayLDH16 download pdf for Altronix  HubWayLDH16

    Altronix - 16 Channel Active UTP Transceiver Hub, Video/Data up to 3000 ft., 1U EIA 19" Rack Mount Chassis, 115/230VAC Input, UL Listed (UL2044), cUL Listed.

    Altronix logo
    Altronix  HubWayLDH16

    Thumbnail Filmstrip of Altronix HubWayLDH16 Images

      Purchase Altronix HubWayLDH16

      SKU: HUBWAYLDH16
      Altronix HubWayLDH16

      Please sign in to purchase.


      Specifications

      Altronix  Active UTP Transceiver Hub

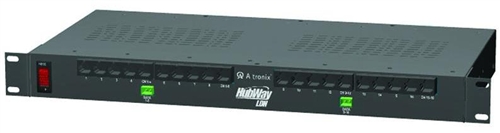

      HubWayLDH16 Active UTP Transceiver Hub transmits UTP video and RS422/RS485 data over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZcameras. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWayLDH16. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.


      Key Features:

      • Picture and Gain control.
      • Sixteen (16) video signal LEDs.
      • Illuminated master power disconnect circuit breaker with manual reset.
      • IEC 320 - 3-wire grounded line cord (detachable).
      • Removable terminal blocks with locking screw flange.
