    UNV TIC3612SA-F3-4F4AC-I1 download pdf for UNV  TIC3612SA-F3-4F4AC-I1

    UNV - Thermal & Optical Dual-spectrum Turret IP Camera, 1/2.8" 4MP PS CMOS, high sensitivity sensor, satisfy the need of starlight monitoring, 0 lux with IR, ICR, Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module, Thermal module support reliable fire detection, smoking detection and fire shield area, Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion,Thermal module supports temperature detection and cold & hot spot tracking which highlights the abnormal temperature, and link to alarm, IP67, Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB, DC12V±25% or PoE power supply, NDAA.

    UNV logo
    UNV  TIC3612SA-F3-4F4AC-I1

    Thumbnail Filmstrip of UNV TIC3612SA-F3-4F4AC-I1 Images

      Purchase UNV TIC3612SA-F3-4F4AC-I1

      SKU: 3612SAF34F4ACI1
      UNV TIC3612SA-F3-4F4AC-I1

      Please sign in to purchase.


      Specifications

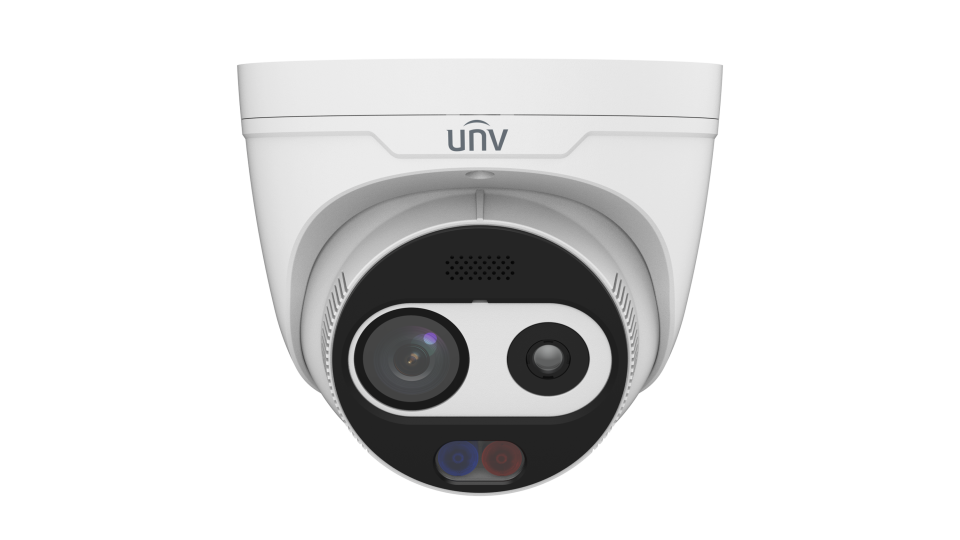

      UNV Thermal & Optical Bi-spectrum Network Dome Camera

      Key Features:
      • Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes
      • 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
      • Thermal module support reliable fire detection, smoking detection and fire shield area
      • Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
      • Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
      • Optical module supports smog recognition, which can help with fire alarm reconfirm
      • Support picture in picture mode, real time contrast live, more convenient and clear
      • Support audio and light alarm, with red and blue warning lights built in
      • Ultra 265, H.265, H.264, MJPEG
      • Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
      • DC12V25% or PoE power supply
      • Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 GB
