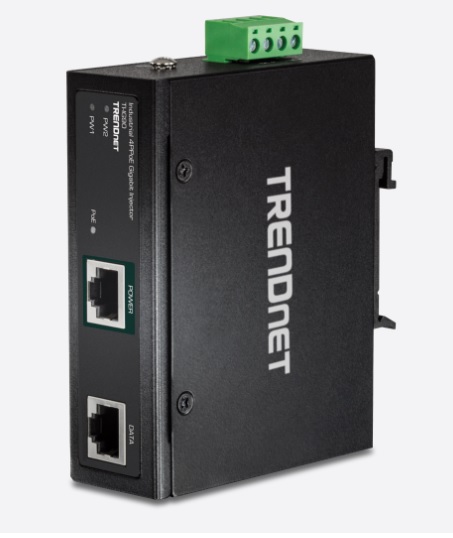

TRENDnet TI-IG90
TRENDnet - Hardened Industrial 90W Gigabit 4PPoE Injector, Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range, Redundant power inputs with overload current protection, Includes DIN-rail mount and wall mount, PoE (15.4W), PoE+ (30W), or 4PPoE (90W) power.
Thumbnail Filmstrip of TRENDnet TI-IG90 Images
SKU: TIIG90
TRENDnet TI-IG90
Please sign in to purchase.
Specifications
TRENDnet Hardened Industrial 90W Gigabit 4PPoE Injector
TRENDnet’s TI-IG90 is a reliable IP30 rated Industrial Gigabit 4PPoE Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE Gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, UPoE, or 4PPoE (up to 90W) device. This industrial PoE injector features redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.
Key Features:
- Hardened IP30 rated Gigabit 4PPoE Injector
- PoE (15.4W), PoE+ (30W), or 4PPoE (90W) power
- Network a PoE device located up to 100m (328 ft.) away
- Extreme -40 to 75 °C (-40 to 167 °F) operating temperature range
- Redundant power inputs with overload current protection
- Includes DIN-rail mount and wall mount
- Power supply sold separately (model TI-S12048)
4-Pair PoE (4PPoE)
Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or 4PPoE (up to 90W) device
PoE Distance
Provides a 4-Pair PoE network connection up to 100m (328 ft.) away from the industrial PoE injector
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, model: TI-S12048)
LED Indicators
LED indicators on the industrial PoE injector confirm PoE connectivity
Gigabit Ports
1 x Gigabit port and 1 x Gigabit 4PPoE port
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Alarm Relay
Alarm relay output triggered by power failure of primary and / or redundant power
Grounding Point
Industrial PoE injector features grounding point to protect equipment from external electrical surges
Easy Installation
No configuration needed, simply connect a PoE network device to the industrial PoE injector
DIN-Rail Mount
IP30 rated metal enclosure, includes DIN-rail mount and wall mount brackets
Wide Temperature Range
A wide operating temperature range of-40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions
