Luminys R54-32PA
Luminys - 8K 32 Channel Analytics NVR, 24 PoE Ports, 8 LumiPower Ports, 384Mbps recording bandwidth, 2ch@8K/8ch@4K/16ch@4MP decoding capacity, supports up to 32MP resolution, 1.5U, 4 SATA, Analytics by recorder, Alarm and Audio support, H.265/H.264 supported, LumiSearch+ supported. Note: Activating LumiSearch+ disables Analytics by Recorder functions, Local Fisheye Dewarp, and NVR face database (IPCs retain database access), NDAA.
Thumbnail Filmstrip of Luminys R54-32PA Images
Specifications
Luminys R54-32PA R5 Mainstream Series 8K 32- Channel 24 PoE NVR
8K 32 Channel Analytics NVR, 24 PoE Ports, 8 LumiPower Ports, 384Mbps recording bandwidth, 2ch@8K/8ch@4K/16ch@4MP decoding capacity, supports up to 32MP resolution, 1.5U, 4 SATA, Analytics by recorder, Alarm and Audio support, H.265/H.264 supported, LumiSearch+ supported. Note: Activating LumiSearch+ disables Analytics by Recorder functions, Local Fisheye Dewarp, and NVR face database (IPCs retain database access), NDAA.
The R54-32PA is part of Luminys’s R5 Mainstream series. R5 series devices are designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.
LumiSearch+* technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR. LumiSearch+ provides enhanced LumiSearch functionality by allowing users to create custom intrusion zones to monitor irregular or high-risk areas more precisely.LumiPower technology enables long-distance Power over Ethernet transmission,
extending power and data delivery up to 3,000 feet. This simplifies installations in
larger or more complex environments by eliminating the need for additional power sources or repeaters.
LumiPower ensures consistent connectivity and dependable power management, ideal for
expansive security infrastructures.
LumiViewer is a desktop and mobile application that streamlines security
management by providing real-time surveillance, playback of historical footage, and instant
alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual
intercom for video calls and door control, and remote access management, LumiViewer ensures
comprehensive and efficient monitoring.
Key Features:
- 8K 32-Channel NVR with 24 PoE Ports
- Up to 400 Mbps Recording Bandwidth (AI Off) / 220 Mbps (AI On)
- Supports 2 Channels at 32MP or 16 Channels at 4MP Decoding
- Supports Recorder-Based and Camera-Side Analytics
- 1.5U Form Factor with 4 SATA, Audio, and Alarm Support
- Storage: Supports up to 64TB total storage (4x 16TB HDD), not included.
Reviews
Leave a Review
Please sign in to leave a review.
Product Reviews
No Reviews Yet!People Also Bought

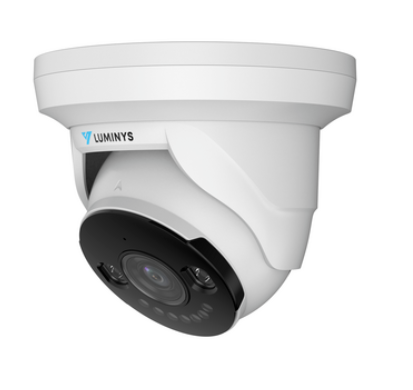

Luminys - 8MP Network LumiLightBand Turret Camera, 1/2.7-in. 8MP CMOS Sensor, ICR, 0 Lux with IR, 2.8mm Fixed Lens, Max (3840 × 2160) at 20 fps, H.265+/H.265/H.264+/H.264/MJPEG, IP67/IK10 Rated, (more...)
Luminys - 4MP IP LumiLuxSmart Turret Camera, 1/1.8-in. 4MP CMOS Sensor, 2.8 mm Fixed Lens, 0.0005 Lux at F1.0 (Color), Max (2688 × 1520) at 30 fps, 3 Streams, H.265+/H.265/H.264+/H.264/MJPEG, WDR (more...)

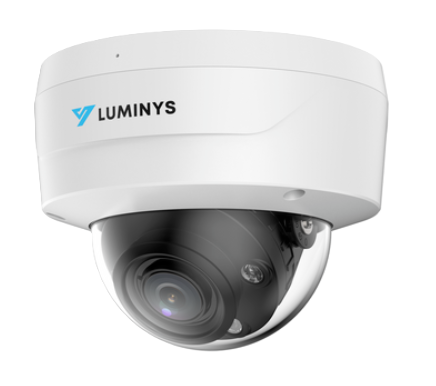

Luminys - 8MP IP LumiLuxSmart Dome Camera, 1/2.7-in. 8MP CMOS Sensor, 2.7-13.5 mm Motorized Vari-Focal Lens, 0.007 Lux at F1.5 (Color), Max (3840 × 2160) at 20 fps, 2 Streams, Smart Encoding Smar (more...)
