Luminys K56-8L1A2
Luminys - 8 Channel LumiLuxLite 5MP IP Bundle: One 8 CH 1 SATA R3 NVR with 2TB Built-in HDD and Eight 5MP LumiLuxLite IP Cameras. NVR R31-8PA2 - 4K (3840 × 2160), H.265, H.264, H.264H, H.264B, MJPEG, Eight (8) Channel: 1080p at 30 fps, Max. 10TB per HDD, 48 V/53 VDC, 2 A/1.8 A, <10W max. Cameras N3T-5KA2 - 1/2.7-in. 5MP Progressive CMOS, IR: Up to 30.0 m (98.4 ft), 2.8mm focal lenght, H.265, H.264, 2 stream capacity, H.265: 128 kbps to 6,144 kbps, G.711U, RJ-45, 12 VDC (-15% to +25%), PoE (802.3af), 8.5W, IP66.
Thumbnail Filmstrip of Luminys K56-8L1A2 Images
Specifications

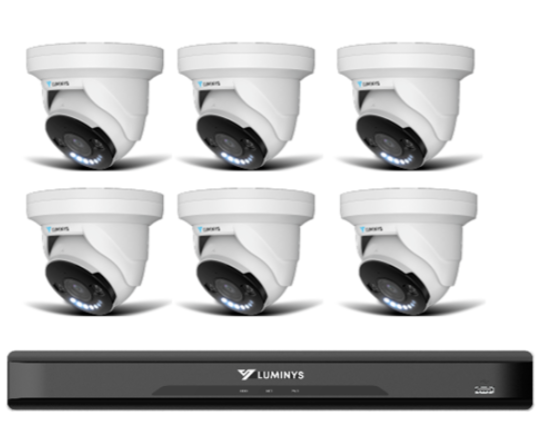

Luminys K56-8L1A2 8CH 5MP LumiLuxLite IP Kit with 1x NVR and 6x Turret Camera
The K56-8L1A2 is a full-featured security solution.
It contains one (1) Luminys R3 series NVR and six (6) 5MP network cameras. This
smartly-designed kit is highly cost-effective and designed with a curated
selection of technologies and features to provide high-quality security without
unnecessary or complicated add-ons. With all devices part of the powerful
Luminys security ecosystem, integration between the cameras and NVR is seamless
and provides the highest levels of compatability and functionality.
Key Technologies
R3 series NVRs are compatible with the LumiViewer desktop platform and mobile
app. LumiViewer streamlines security management by providing real-time surveillance,
playback of historical footage, and instant alarm notifications. With features
like device sharing, an alarm hub for safety alerts, visual intercom for video
calls and door control, and remote access management, LumiViewer ensures
comprehensive and efficient monitoring.
LumiLuxLite technology allows cameras to capture clear, full-color video
day or night. When motion is detected, LumiLuxLite cameras switch from IR LEDs
to white-light LEDs to illuminate a scene, then switch back to IR mode once
motion has ceased to prevent light pollution and energy inefficiency.
Intelligent Motion Detection (iMD) technology accurately detects and
filters humans and vehicle in a monitoring area. Using an advanced algorithm,
iMD can accurately detect humans and vehicles while reducing false alarms
caused by other objects, animals, or lighting. Users can be alerted to iMD
events for timely security. iMD events can be saved for future reference and
easily searched for at a later time for forensic analysis and to assist in
investigations.
NVR - R31-8PA2 R3 Series NVR, 4K 8 Channel, 4 PoE with 2 TB HDD
Key Features:
Eight (8) Channels
- Recording Resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p,
- D1, VGA, CIF
- H.265, H.264, H.264H, H.264B, MJPEG
- Capability: Two (2) Channel: 8MP at 30 fps Eight (8) Channel: 1080p at 30 fps
- 1 SATA Port, 2 TB HDD Pre-Installed, Max 10 TB per HDD
- 48 V/53 VDC, 2 A/1.8 A, < 10 W (Without HDD) PoE: 72 W (Max. Output for Single Port:
- 25.5 W)

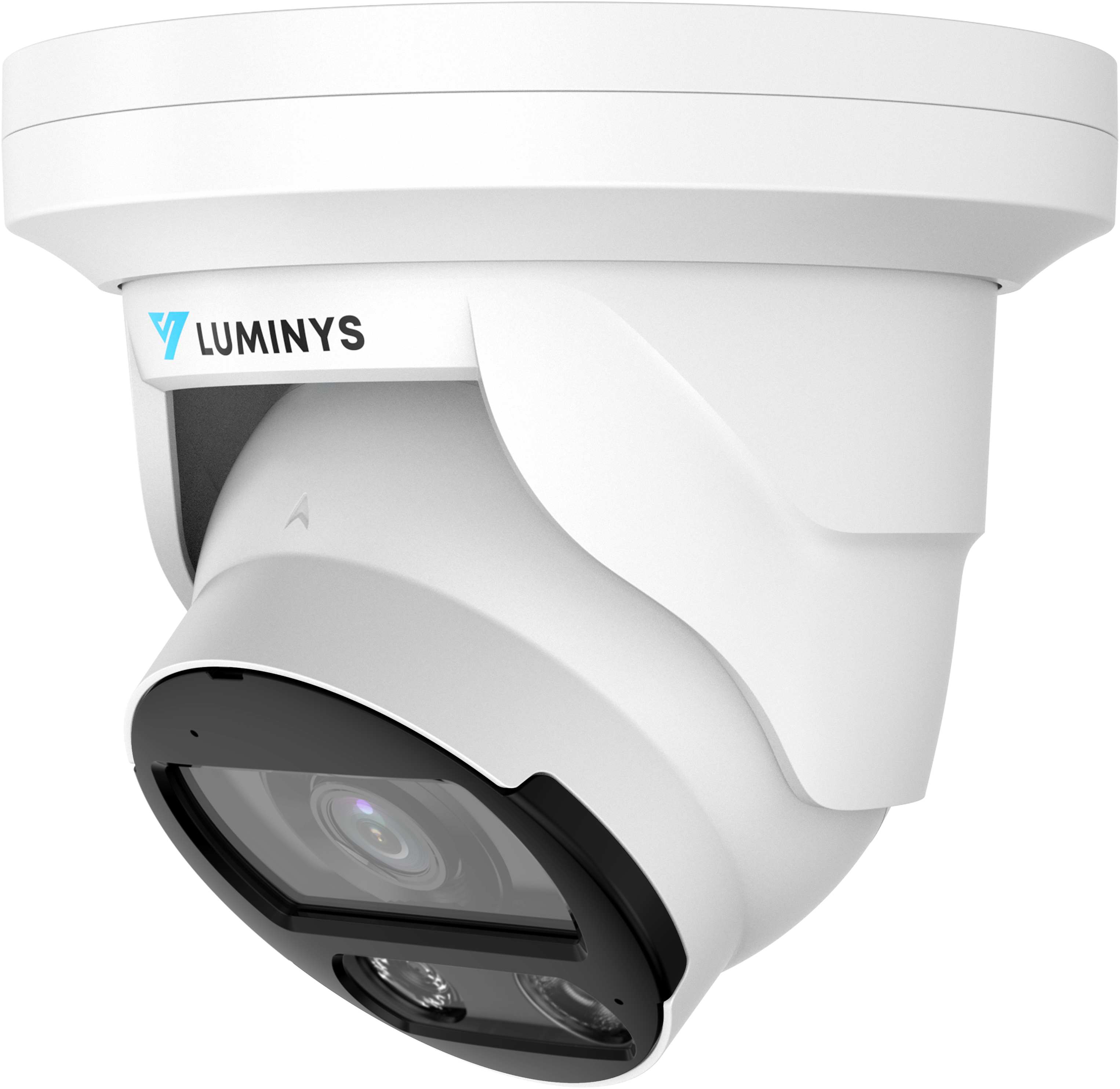

Camera - N3T-5KA2 5MP LumiLuxLite Fixed Turret Network Camera (2.8mm)
Key Features:
N3 Series
- 1/2.7-in. 5MP Progressive CMOS
- Max. Resolution: 2880 x 1620
- Max. Illumination Distance 98.4ft
- Pan: 0° to 355°, Rotation: 0° to 360°, Tilt: 0° to 80°
- 2.8mm focal length, fixed
- Field of View: Horizontal: 108.3°, Vertical: 59.9°, Diagonal: 126.8°
- H.265, H.264
- Resolution: 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, D1 (704 x 576),
- VGA (640 x 480), CIF (352 x 288)
- 2880 x 1620 at 25 fps
- H.265: 128 kbps to 6,144 kbps
- G.711U
- 12 VDC (-15% to +25%), PoE (802.3af), Max 8.5 W
Reviews
Leave a Review
Please sign in to leave a review.
Product Reviews
No Reviews Yet!Related Products
login to view prices
People Also Bought

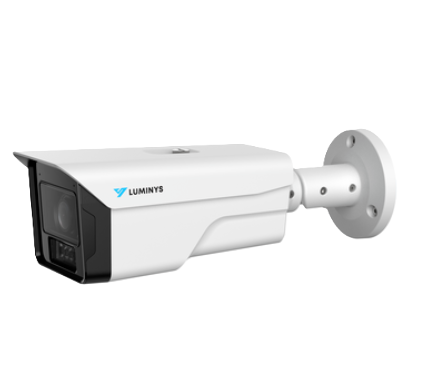

Luminys - 4MP IP LumiLuxSmart Bullet Camera, 1/2.9-in. 4MP Progressive CMOS, 0 Lux With IR Light On, 2.7 mm to 13.5 mm Motorized Vari-Focal Lens, IR: Up to 200.0 ft, Smart Encoding H.265+, H.265, (more...)

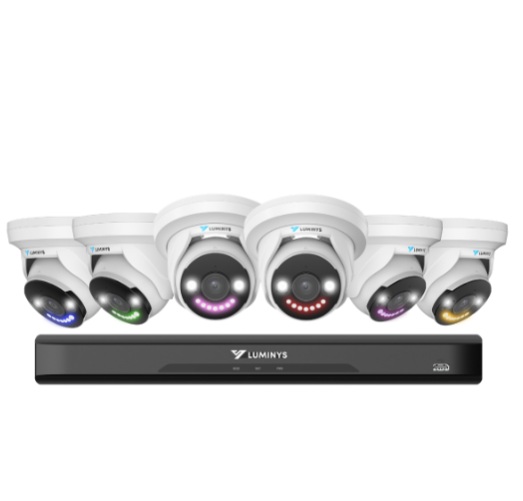

Luminys - 8CH 8MP LumiLightBand IP Bundle: One 8 CH 2 SATA R3 NVR (R32-8PA4) with 4TB Built-in HDD and Six 8MP LumiLightBand IP Cameras (N3T8BA2). HDMI and VGA Output, PoE Plug-and-Play, 8MP Turre (more...)
