    GeoVision GV-IPDECODERBOX download pdf for GeoVision  GV-IPDECODERBOX

    GeoVision - IP Decoder Box Ultra, Designed to Decode Incoming IP Streams from GeoVision and Third-Party IP Devices, Decode up to 8MP IP cameras, Support for Single, 4-Divsion, 8-Division, and 9-Division View, H.264/H.265, Micro SD/SDHC Card Slot, DC 12V / PoE.

    Geovision logo

    Thumbnail Filmstrip of GeoVision GV-IPDECODERBOX Images

      Purchase GeoVision GV-IPDECODERBOX


      Please sign in to purchase.

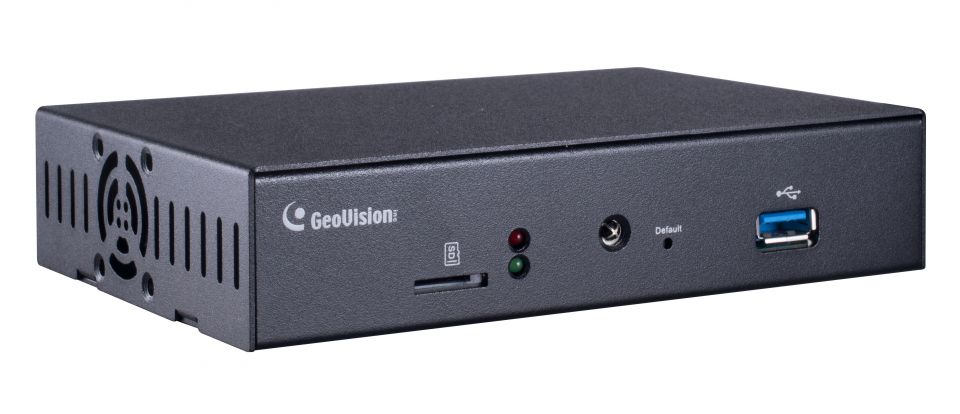

      Geovision  GV-IP Decoder Box Ultra

      GV‐IP Decoder Box Ultra is designed to decode incoming IP streams from GeoVision and third‐party IP devices. It serves as a medium for connecting the cameras and the monitor for video display in Single, 4‐Division, 8‐Division, and 9‐Division View. It supports third‐party IP cameras that adhere to RTSP or ONVIF and is able to automatically search for ONVIF‐compliant third‐party IP devices under the same LAN. To be used with only a monitor, GV‐IP Decoder Box Ultra provides a cost‐effective solution for video surveillance as opposed to the traditional DVR and PC setup. The security administrator can monitor channels, take snapshots of critical moments, and pause at a channel when events occur. GV‐Joystick V2 can be installed to control GeoVision and third‐party PT / PTZ / Speed Dome cameras.

      Key Features:

      • Decode video streams in H. 264 / H.265 codec up to 30 fps
      • Decode up to 8 megapixel IP cameras
      • Decode up to 64 IP streams
      • Automatically search for ONVIF IP devices
      • Support for third‐party IP cameras that adhere to RTSP or ONVIF
      • Support for Single, 4‐Divsion, 8‐Division, and 9‐Division View
      • Display of Matrix view through GV‐Mobile Server
      • Support for 10/100 Ethernet over LAN
      • DC 12V / PoE (IEEE 802.3af)
      • HDMI video output resolutions up to 4K
      • Control the user interface using GV‐IR Remote Control
      • Control PTZ and Speed Dome cameras using GV‐Joystick V2
      • Remote firmware upgrade, IP address configuration, and addition of new channel
      • Micro SD card and USB drive for snapshot storage and firmware upgrade
