GeoVision GV-B600U

Specifications

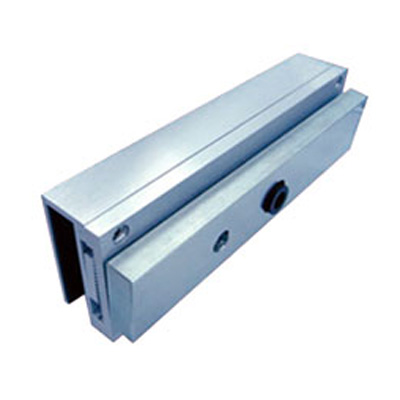

GeoVision GV-B600U U Bracket for 600lbs Gate Lock

The GV-B600U Brackets are required for installing the GV-ML600 or GV-ML1200 electromagnetic lock on the glass doors. With the GV-ML600 or GV-ML1200 lock body mounting on the door frame, and the U bracket attaching to the magnet faceplate from the GV-ML600 or GV-ML1200, the glass door is secured with the electromagnetic lock to enhance the security.

Key Features:

• Holding Force: 272.15 kg (600 lb)
• Dimensions (L x W x H): 185 x 62 x 33.6 mm (7.3" x 2.44" x 1.32")
• Weight (bracket + spacer + plates): 700 g (1.54 lb)
• Material: Aluminum
• Suitable glass thickness: 7 mm to 12 mm
