    Dahua 49225ICLA download pdf for Dahua  49225ICLA

    Dahua - 2 MP HDCVI PTZ Camera, 1/2.8-in. 2 MP STARVIS™ CMOS Sensor, Powerful 25x optical zoom, Starlight Technology for Ultra-low Light Sensitivity, Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI, 120 dB true WDR, 3D DNR, Predictive Focus Analysis (PFA) Technology, Max. 25/30 fps@1080P, 25/30/50/60 fps@720P, ArcticPro Series Camera - Operational down to –40° C (–40° F), IR distance up to 328ft, IP66.

    Dahua logo
    Dahua  49225ICLA

    Thumbnail Filmstrip of Dahua 49225ICLA Images

      Purchase Dahua 49225ICLA

      SKU: 49225ICLA
      Dahua 49225ICLA

      Please sign in to purchase.

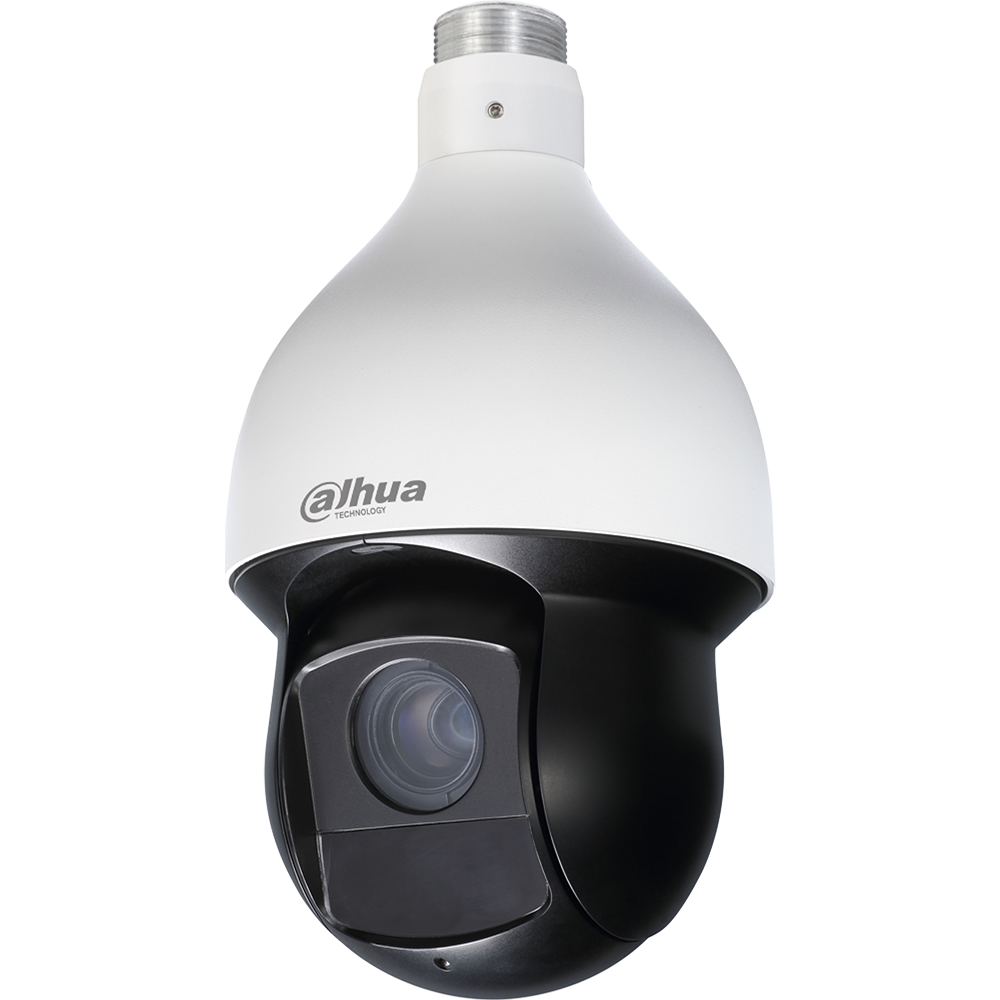

      Dahua 2 MP HDCVI PTZ Camera

      The 2 MP Starlight IR PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 25x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for indoor and outdoor applications. The camera features 120 dB True WDR, suitable for applications with complex dynamic range, ensuring both the bright and dark areas are seen clearly. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.

      Key Features:

      • 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
      • Powerful 25x Optical Zoom
      • Starlight Technology for Ultra-low Light Sensitivity
      • 1080p at 30 fps, 720p at 60 fps Maximum Resolution
      • Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
      • Maximum IR Distance up to 100 m (328 ft)
      • Predictive Focus Analysis (PFA) Technology
      • ArcticPro Series Camera - Operational down to –40° C (–40° F)
      • IP66 Ingress Protection
      Starlight Technology

      For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers light sensitivity that captures details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.


      HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.

      Multi-Format Output Support

      The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.

      Long Distance Transmission

      HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.

      Predictive Focus Analysis Technology

      The camera uses innovative PFA Technology to improve zoom accuracy and to decrease focus time. A series of advanced algorithms more accurately judge the direction and the distance to a subject, improving picture clarity throughout the zooming process.

      True Wide Dynamic Range

      The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.


      The Dahua ArcticPro Series of extreme-environment cameras combine temperature-tolerant components, a waterproof enclosure, and an integrated heater to ensure flawless operation in temperatures as low as –40° C (–40° F). For applications that demand high-resolution video with advanced features in extremely cold environments, the Dahua ArcticPro Series offers a camera to satisfy the most demanding requirements.


      With a built-in heater and a temperature range of -40 °C to +70 °C (-40 °F to 158 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.


      This camera suits even the harsh conditions for outdoor applications.  Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.
